Using a precision colorimeter is important because it is the only way to measure color accurately. Human eyes cannot measure color accurately, so a device is needed to measure color.
The colorimeter is a very sensitive measuring instrument, and can measure the absorbance of light over a very wide range of wavelengths. Most colorimeters can measure absorbance in the range of ultraviolet, and some can measure absorbance in the range of infrared.
It can be used to measure the color of a solid, liquid or gaseous sample. The precision colorimeter is commonly used in laboratory and production applications, which is important in many industries, as color can be an indicator of impurities or differences in product quality. To use a precision colorimeter, illuminate the sample with white light and then measure the color of the reflected light using the instrument. Samples of different sizes, shapes and colors can be measured.
A spectrocolorimeter is a device used to measure and analyze colors much more deeply than a colorimeter. Specifically, this equipment allows a more complex and complete color analysis of the samples, from which the spectral reflectance can be determined at each wavelength, offering a much greater accuracy and a much wider range of applications than those offered by a colorimeter.
These devices have great applicability in the work of professionals with specific and advanced requirements in terms of color control, since they are specially designed to support those analyzes where the highest accuracy and color management is required.
Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.Double ...
precision colorimeter features with 8/d structure that is very precise. 8mm measurement aperture makes ...
Kalstein team concentrates on customer needs and develops a new serie YR05509 // YR05513 with high precision...
using autonomous core technology research and development of A portable light color difference instrument...

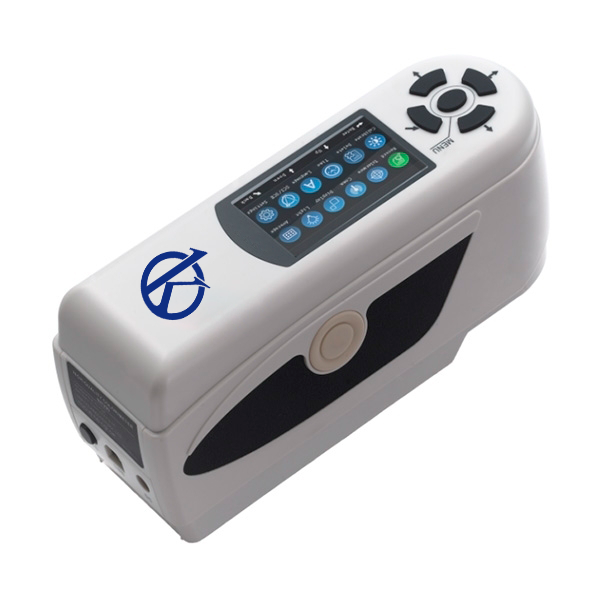

Colorimeter is an economical and practical model, user-friendly interface design is easy to learn and operate. Illuminating and cross double locating functions make measurement more precise. Built-in white board makes measurement easier. At the same time, CQCS high-end color quality management software equppied with instrument can easily help you manage your color database.
| Model | YR05514 |
| Illuminating/Viewing Geometry | 8° /D |
| Standard | CIE No.15, GB/T 3978 |
| Sensor | Silicon photodiode |
| Measuring Aperture | 4mm |
| Color Space | CIE LAB, Lch |
| Observer | CIE 10° |
| Illuminant | D65 |
| Display Data | Colorimetric Value, Color Difference Value Storage |
| Temperature | /Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 1.5s |
| Repeatability | ΔE* ab ≤ 0.03 (Average of 30 measurements of Standard white Plate) |
| Dimension | 205*67*80mm |
| Errors Between each instrument | ΔE* ab 0.4 |
| Weight | 400g |
| Battery | rechargeable lithium-ion battery 3. 7V@ 3200Ah |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Screen | TFT 2.8 inch (16:9) |
| Interface | USB |
| Storage | 100 Standards, 10000 Samples |
| Operating Temperature | 0-40°C (32-104°F) |
| Storage Temperature | -20 -50°C (-4-122°F) |
| Optional Accessory | miniature thermal printer, powder test box |
Colorimeters are instruments used to determine the exact composition of a color, because they have the ...
Colorimeters are instruments used to measure and analyze colors. Specialized color measurement equipment...
A spectrocolorimeter is a device used to measure and analyze colors much more deeply than a colorimeter. Specifically, this equipment allows a more complex and complete...
The colorimeter is a measuring instrument used to measure the concentration of a chemical in a sample...
Precision is key when it comes to manufacturing and producing food and drink. Consumers have high expectations...
Anions are negatively charged ions, are in solution and are attracted to the anode, or positive electrode. To identify ...
A colorimeter is a device used to measure the concentration of a colorless solution. It is commonly used in water...
A colorimeter is a tool used to determine the concentration of a chemical in a sample. It is a portable and compact device that can be used both in the laboratory and in the field. Therefore, in Kalstein we have the optimal colorimeter that measures...
To know the price of the Colorimeter we invite you to send us an email with your request through the contact form.
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
